PLEMPIRE PL2000 Plus Fast and affordable jewelry wax printer
Elevate your jewelry production with our state-of-the-art 3D wax printer. Utilizing cutting-edge MultiJet Printing technology, this printer produces ultra-fine, intricate wax pieces with an impressive layer thickness of just 0.016 mm - perfect for mass production.
* The reviews provided are based on the satisfaction of www.925.pl customers with products produced on the featured printer.
Find out more about our printer PL2000 Plus 3D wax jewelry printer
PLEMPIRE PL2000 Plus wax printer is suitable for mass production of jewelry, focusing on the jewelry field. It is a wax 3D printer with high efficiency and high precision molding. The PLEMPIRE PL2000 Plus wax printer uses MultiJet Printing (MJP) technology, which can print ultra-fine wax-type workpieces with a large print interface thickness of only 0.016mm. The surface quality of the printed workpiece is excellent. With extremely fine details and precision enabling fast workflows and large batches customized, directly casting to improve casting production efficiency.
-
High Definition Fine modeling up to 1200 x 1200 x 1600 dpi
-
High Contrast Deep purple building wax (YHK-601) White support wax (YHK-102)
-
Easy Operation English operation interface, short-term training
-
Super large building space (W x D x H) : 11.6 x 8.3 x 59 in (294 x 212 x 150mm)
-
Flexible production Three channels, provides flexible conversion of printing speed and capacity 24/7
Specification |
|
|---|---|
| Machine name | PLEMPIRE PL2000 Plus |
| Build volume(xyz) | 294 x 212 x 150 mm |
| XHD Printing Mode | 1200 x 1200 x 1600 dpi, 16 μm layers |
| Accuracy | ± 0.1016 mm per 25.4 mm of part dimension |
| XHD Build speed in Z | Single Lane: 7.50 (mm/hr); Two Lanes: 3.50 (mm/hr); Three Lanes: 2.40 (mm/hr) |
| File format | STL, SLC, OBJ, AMF, MJPDDD |
| Material Package | 1.2kg bulid, 1.35kg support bottles: maximum machine capacity-2bulid & 2 support bottles |
| Machine size | 1272 x 780 x 1210 mm |
| Machine weight | Gross Weight: 420 KGS, Net Weight: 320 KGS |
| Current and voltage | 220-240 VAC, 50/60 Hz, 15 A |
| Input/Output | 220-240 VAC, 50 Hz , 10 A, Single C14 Socket |
| Warranty | 1 Year |

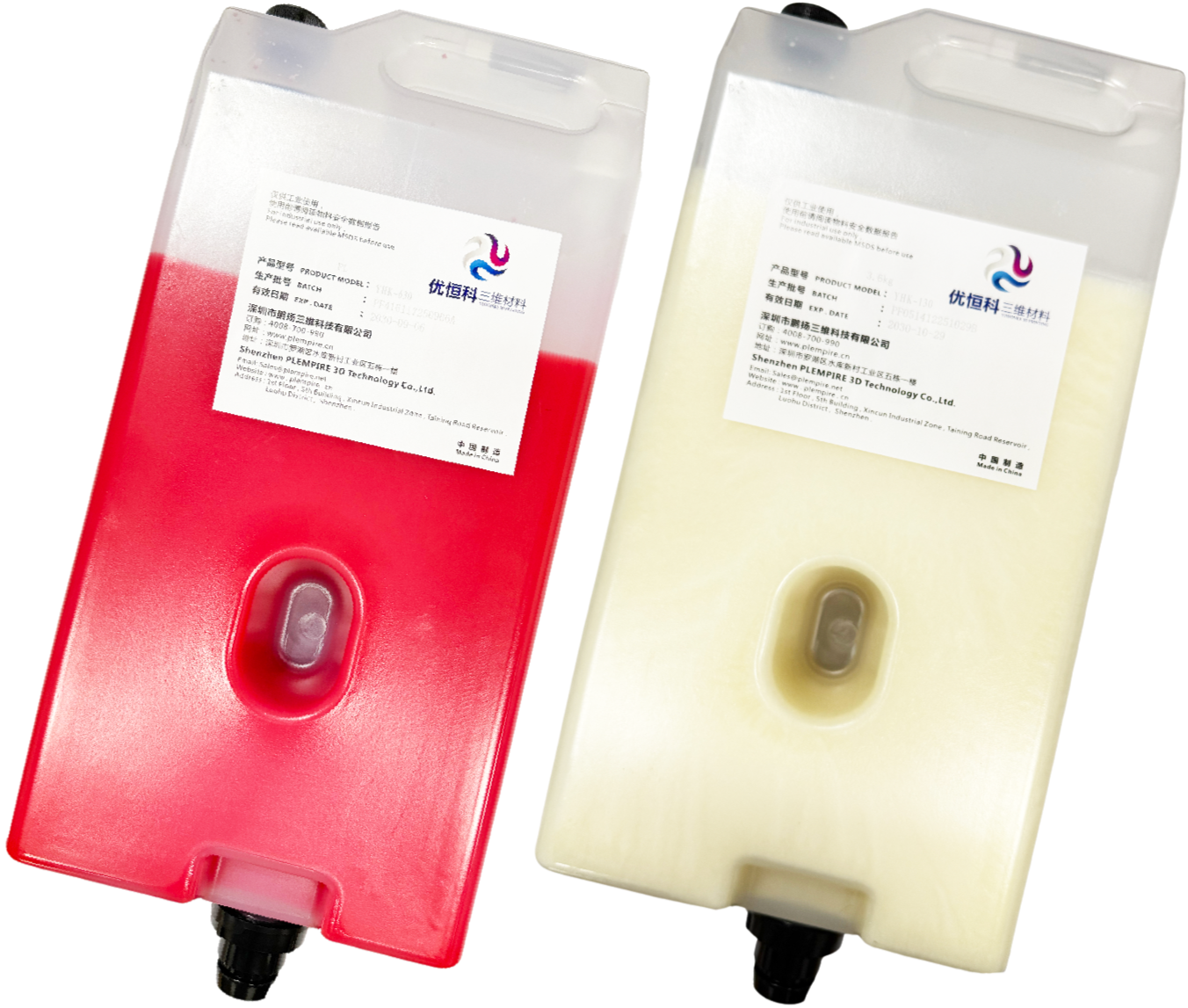

Familiarize yourself with the materialsYHK Wax Material for MJP 3D Printing
Self-developed, High Stability, High precision YHK Wax Material. It is Preferred Economic Jewelry 3D Printing Wax. YHK Material Is Based on MJP mode Forming Principle 3D Printing Model And Support Wax. Non-toxic and non-irritatingl - Environmental Safety and High Stability.
-
High cost, High performance Low cost, high performance
-
Smooth surface High detail surface, improve processing quality
-
No pollution, no pungent smell Non toxic, no pungent smell, safety, health, enviroment
-
Multiple remove support methods without manual operation Use dissolved support technology, hands-free dissolvable wax
-
Apply to various models 3D printers based on the principle of MJP model
Specification |
|
|
|---|---|---|
| Wax name | YHK-601 | YHK-102 |
| Description | High resolution durable casting wax | Eco friendly, hands-free dissolvable wax |
| Composition | 100% wax | wax support material |
| Color | Purple | White |
| Bottle Quantity | 1.2kg | 1.35kg |
| Density @ 80 °C (Liquid) | 0.80 g/cm3 | 0.80~0.84 g/cm3 |
| Melting Point | 61-68 °C | 55-65 °C |
| Softening Point | 40-50 °C | N/A |
| Volume Schrinkage | 2 % | N/A |
| Linear Schrinkage | 0.70 % | N/A |
| Needle Penetration Hardness | 12 | N/A |
| Ash Content | < 0.05 % | N/A |
